If there is a water source near your house, consider the ground source heat pump system (water system). It integrates central air conditioning, floor heating, and domestic hot water to deliver comprehensive comfort.
The system uses shallow surface water sources, such as groundwater, rivers, lakes, and seas, along with solar and geothermal energy. It transfers low-temperature heat to a high-temperature system using the heat pump principle. This process requires only a small amount of electricity and achieves efficient energy conversion.
Compared to traditional central air conditioning, the ground source heat pump system offers more stable cooling and heating. It saves energy, reduces environmental impact, and provides cooling, floor heating, and hot water simultaneously. It truly combines multiple functions in one machine.
The ground source heat pump system can realize cooling and heating and can also provide domestic water, replacing the original air conditioners and boilers, eliminating the need for cooling towers.
Low operating costs. The ground source heat pump system can obtain more than 5 kilowatts of cooling capacity for 1 kilowatt of power consumption, saving 40-60% of electricity costs compared to other air conditioners, and can also provide domestic water for free. It is the most energy-saving air conditioning method today.
Environmental protection. Since it only consumes a small amount of electricity, it will not produce carbon dioxide and other polluting gases during operation, and it will not affect the health of indoor personnel due to leakage problems. It is one of the most environmentally friendly air conditioning methods today.
The installation cost of the ground source heat pump air conditioning and floor heating system may be higher than that of ordinary systems. However, the extra installation cost can be recovered through electricity savings within 2 to 3 years.
When ordinary central air conditioners face summer temperatures above 40℃ or winter temperatures below 0℃, their performance drops significantly. In contrast, the ground source heat pump exchanges heat through underground soil, unaffected by external temperatures. It operates stably, maintaining consistent cooling and heating effects, keeping the indoor environment comfortable.
Ordinary air conditioners require outdoor installation for their external unit, which generates relatively high noise, especially at night. The ground source heat pump external unit can be placed in a machine room, reducing noise and improving environmental comfort.

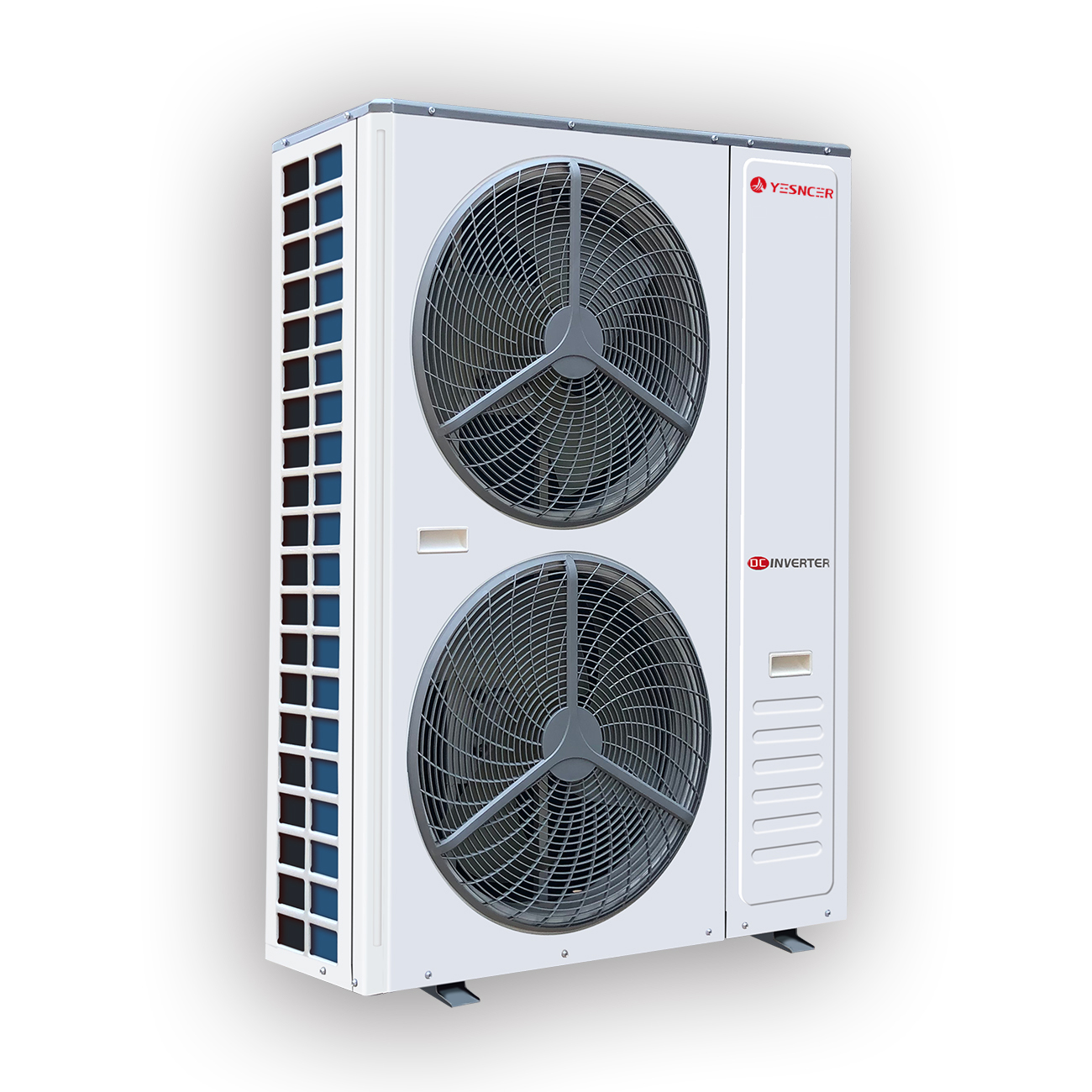

Air source heat pump is a new type of heating and cooling equipment. It is not only powerful, but also widely used in homes, hotels, office buildings and other places. Air source heat pump can not only be used as floor heating, but also as central air conditioning cooling, and can also be connected to air energy water heater.
Air source heat pump is powerful and can fully meet the needs of life and hot water all year round. Compared with traditional heating methods, air source heat pump has many advantages and has also won the favor of consumers.
However, when consumers choose air source heat pump, they still have a lot of vague understanding of air source heat pump, such as heating and cooling principle is one of the issues that everyone is more concerned about. Let's discuss it below.
The air source heat pump absorbs low-temperature heat from the air using a small amount of electrical energy through the reverse Carnot principle. The compressor converts this low-temperature heat into high-temperature heat and sends it to the water tank to heat hot water. With high energy efficiency, fast operation, and low energy consumption, the heat pump continuously provides hot water while ensuring safety and environmental protection.
During winter heating, the air source heat pump adjusts the working state by shifting the reversing valve position. The compressor discharges high-pressure refrigerant vapor into the indoor evaporator. As the refrigerant condenses, it releases latent heat, warming the indoor air. The condensed refrigerant then flows through the throttling device into the condenser. Here, it absorbs external heat and evaporates. The compressor inhales the vapor, completing the heating cycle.
The air source heat pump compresses low-pressure refrigerant into high-temperature, high-pressure gas using a compressor. The high-temperature refrigerant gas flows through copper tubes outside the water tank. It transfers heat to the water tank, providing high-temperature water for heating or floor heating. After cooling, the refrigerant becomes liquid and enters the evaporator through the expansion valve. In the evaporator, the liquid refrigerant evaporates quickly, absorbing a large amount of heat and lowering the air temperature to provide cooling.
The fan blows air over the outer surface of the evaporator, absorbing heat and cooling the air. The cooled air is then sent into the room through the fan coil to provide cooling. The evaporated refrigerant returns to the compressor to begin the next cycle.
Ground source heat pumps and air source heat pumps each have their own unique advantages and are suitable for different usage scenarios. If your area has a mild or cold climate and can provide groundwater or soil resources, then the ground source heat pump is undoubtedly a very efficient and environmentally friendly choice. It can provide stable cooling and heating effects while meeting the family's hot water needs, especially for users who have high requirements for energy efficiency and environmental protection.
If you value a solution that is easy to install, low cost and highly adaptable to the environment, then an air source heat pump is an ideal choice. Air source heat pumps are suitable for most areas, especially for areas without groundwater sources, and have a short installation period and relatively low initial investment.
